RB21S Anti Corrosive Pressure Transmitter

Send Inquiry

Request To Call Back

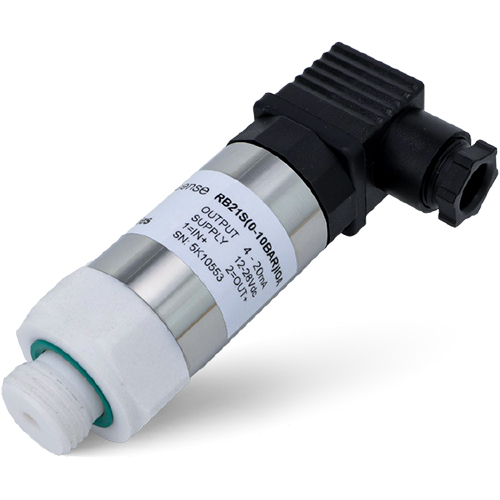

RB21S Anti Corrosive Pressure Transmitter

Name: RB21S Anti Corrosive Pressure Transmitter
Brand: RBA OPTISYNC PRIVATE LIMITED
Price: 6732 INR
Availability: InStock

Price 6732 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

RB21S Anti Corrosive Pressure Transmitter Specification

Equipment Type
Anti Corrosive Pressure Transmitter

Current Range
4~20 mA output

Protection
IP65, IP67 (with cable connection)

Diameter
Standard 26 mm

Application Media
Corrosive Liquids and Gases

Measurement Range
As per range selection: 0~0.1 MPa to 60 MPa

Pressure Range
0~0.1 MPa to 60 MPa

Humidity %
85% RH

Connectivity Type
2-wire (4~20mA) / 3-wire (Voltage output available)

Temperature Range
-20C to +70C (medium), -20C to +70C (ambient)

Resolution
0.1% F.S.

Sensor Type
Piezoresistive

Material
PTFE, Hastelloy, Stainless Steel, Tantalum (wetted parts)

Power Supply
12-36 VDC

Power Consumption
< 1.5W

Accuracy
0.25% F.S. (standard), 0.5% F.S. (optional)

Display Type
Digital LCD (optional)

Range
0~0.1 MPa to 60 MPa

Zero/Span Adjustment
External, optional

Output Signal
4~20 mA, 0~5V, 0~10V (customizable)

Response Time
< 1 ms (up to 90% F.S.)

Stability
0.25% F.S./year

Electrical Connection
Cable or DIN connector

Overload Pressure
150% F.S.

Process Connection
M201.5, G1/2, or as ordered

Weight
Approx. 250g

Explosion Proof
Ex ia IIC T6 Ga (optional)

RB21S Anti Corrosive Pressure Transmitter Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About RB21S Anti Corrosive Pressure Transmitter

Select the RB21S Anti Corrosive Pressure Transmitter for its enviable precision and uncommon durability in demanding environments. With competitive pricing, this transmitter offers exceptional access to a broad range of features, including customizable output signals (4~20 mA, 0~5V, 0~10V) and zero/span adjustment options. Its robust construction using PTFE, Hastelloy, Stainless Steel, or Tantalum ensures reliable operation with corrosive liquids and gases. The RB21S stands out for its stability, explosion-proof options, and IP67 protection, making it a trusted choice for those seeking superior performance in industrial or commercial settings.

Versatile Applications for Exceptional Industrial Needs

The RB21S Anti Corrosive Pressure Transmitter is specifically engineered for usage with corrosive liquids and gases, making it ideal for industries such as chemical processing, pharmaceuticals, water treatment, and oil & gas. Used as an enviable solution for precise pressure measurement, it caters to commercial applications requiring reliable performance in harsh or challenging conditions. Its adaptable design fits various mounting and connection requirements, ensuring uncommon flexibility for diverse commercial and industrial tasks.

Secure Shipping and Transparent Transaction Terms

RB21S Anti Corrosive Pressure Transmitter is delivered with secure shipping and careful packaging to ensure product integrity on delivery. Sample policy includes the option for chargeable samples upon request, enabling clients to verify product suitability before full orders. Payment terms are competitive and flexible, supporting convenient transactions for both domestic and international clients. Every shipment is handled with uncommon care for your peace of mind.

FAQ's of RB21S Anti Corrosive Pressure Transmitter:

Q: How does the RB21S transmitter handle corrosive media?

A: The RB21S is constructed with uncommon materials like PTFE, Hastelloy, Stainless Steel, and Tantalum on wetted parts, ensuring exceptional resistance against a wide range of corrosive liquids and gases.

Q: What are the available output signal options and connectivity types?

A: You can select from 4~20 mA, 0~5V, or 0~10V output signals, and choose 2-wire or 3-wire connectivity, making integration straightforward and suited to different industrial control systems.

Q: Where can the RB21S transmitter be used commercially?

A: This transmitter is widely used in chemical plants, pharmaceutical production, water treatment facilities, and oil & gas industries-any site demanding accurate measurement of corrosive media pressures.

Q: What is the process for ordering custom range or process connections?

A: You can access custom measurement ranges (from 0.1 MPa up to 60 MPa) and bespoke process connection types (such as M201.5 or G1/2) at the time of ordering, ensuring a perfect fit for your application.

Q: What are the main benefits of using the RB21S Anti Corrosive Pressure Transmitter?

A: Key advantages include enviable measurement accuracy, exceptional stability, explosion-proof options, and resilience against aggressive environments, all at competitive pricing.
