RB21C1 General Purpose Pressure Transmitter

Send Inquiry

Request To Call Back

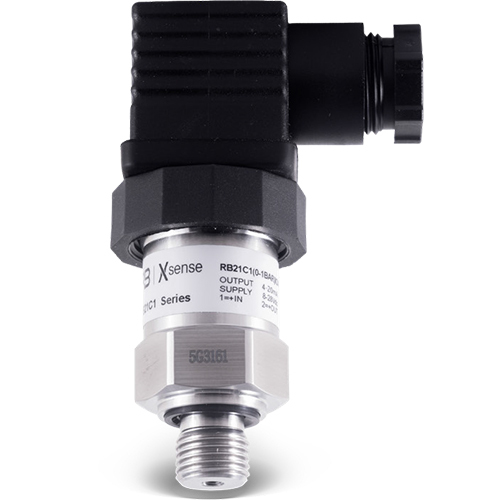

RB21C1 General Purpose Pressure Transmitter

Name: RB21C1 General Purpose Pressure Transmitter
Brand: RBA OPTISYNC PRIVATE LIMITED
Price: 6732 INR
Availability: InStock

Price 6732 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

RB21C1 General Purpose Pressure Transmitter Specification

Capacity
Varies with model (up to 1000 bar)

Equipment Type
General Purpose Pressure Transmitter

Humidity %
0~95% RH (non-condensing)

Protection
IP65

Connectivity Type
Electrical Connection: M20 x 1.5 or custom

Sensor Type
Piezoresistive (Silicon Sensor Core)

Frequency
DC analog signal

Current Range
4~20 mA DC output

Pressure Range
0~1 bar up to 0~1000 bar

Application Media
Liquid, Gas, Steam

Diameter
27 mm (sensor housing)

Temperature Range
-20C to +85C

Measurement Range
0~1 bar to 0~1000 bar

Resolution
0.01 bar

Material
Stainless Steel 304/316

Power Supply
24V DC (12~36V DC)

Power Consumption
2W

Accuracy
0.5% F.S

Display Type
No Display (Analog Output)

Range
0~1 bar up to 0~1000 bar

EMC Compliance
IEC 61326-1

Process Connection
G1/2" standard (others on request)

Explosion-proof Grade
Ex ia IIC T6 (optional)

Zero/Span Adjustment
Internal potentiometer or software (on request)

Output Signal
4~20 mA, 0~10 V, 1~5 V (customizable)

Storage Temperature
-40C to +125C

Vibration Resistance
20g (20~5000 Hz)

Load Resistance
500 (for 4~20 mA output)

Response Time
1 ms

RB21C1 General Purpose Pressure Transmitter Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About RB21C1 General Purpose Pressure Transmitter

Unlock pivotal performance with the RB21C1 General Purpose Pressure Transmitter, engineered for accuracy and versatility across various applications. This top-ranking device offers potent customization, featuring output signals of 4~20 mA, 0~10 V, or 1~5 V to match unique requirements. Its robust stainless steel 304/316 body ensures reliable operation, even in demanding environments. Benefit from savings through long-lasting durability and personalisable configuration options, including zero/span adjustments and explosion-proof protection. EMC compliance and vibration resistance enhance safety and operational reliability. Ideal for measuring liquid, gas, or steam up to 1000 bar.

Primary Competitive Advantages & Applications

The RB21C1 Pressure Transmitter stands out for its potent customisation, rugged build, and swift 1 ms response-making it pivotal for industries like manufacturing, power plants, and chemical processing. Used by professionals who prioritise accuracy, its wide range and robust stainless steel design make it suitable for challenging media including liquid, gas, and steam. Its simple integration and high vibration resistance provide reliability, making it a top-ranking choice for critical process monitoring.

Export Markets, Payment, and Certifications

Trusted worldwide, the RB21C1 is shipped to major export markets including Europe, Asia, and the Middle East. Upon receipt of purchase orders, we ensure timely dispatch and track arrival to your location. Certifications such as IEC 61326-1 EMC compliance and optional explosion-proof grading reinforce product reliability. Flexible payment terms are available to accommodate importers, manufacturers, and service providers seeking reliable partnership and assured quality with every transaction.

FAQ's of RB21C1 General Purpose Pressure Transmitter:

Q: How does the RB21C1 transmitter ensure accurate pressure measurement?

A: The RB21C1 utilises a high-quality piezoresistive silicon sensor core and precision engineering to deliver robust, accurate measurements with 0.5% F.S accuracy-even in demanding conditions.

Q: What range of process media can this transmitter handle?

A: It is suitable for various process media, including liquids, gases, and steam, making it highly versatile for general industrial and commercial applications.

Q: Where can the RB21C1 be installed for optimal performance?

A: The transmitter is designed for broad installation options, fitting both standard G1/2" and custom connections, and operates reliably in environments from -20C to +85C and up to 95% relative humidity.

Q: What are the main benefits of internal potentiometer and software zero/span adjustment?

A: These features allow users to easily personalise and fine-tune the transmitter, optimising it for their specific process requirements and ensuring consistent measurement reliability.

Q: How does explosion-proof protection enhance the transmitter's safety?

A: With optional Ex ia IIC T6 explosion-proof certification, the RB21C1 is suitable for hazardous areas, significantly increasing safety in environments with volatile gases or vapours.
